Description

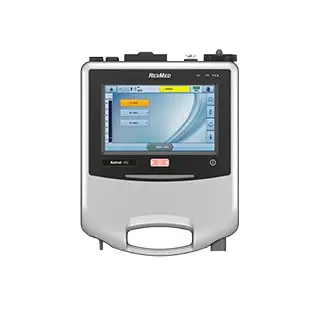

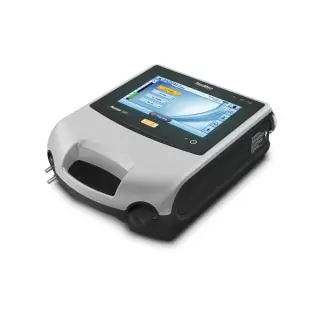

The ResMed Astral 100 is a home ventilator for non-invasive and invasive ventilation, for less dependent to fully dependent patients (> 5 kg), according to the manufacturer, as directed by a doctor. It is used only under medical supervision. Circuits: single limb with intentional leak, single limb with expiratory valve and mouthpiece circuit.
Who it is for
- As directed by a doctor: use, settings and monitoring are handled by your doctor and care team; the ventilator is not used without medical supervision.
Ways to use it
- Circuits: single limb with intentional leak, single limb with expiratory valve and mouthpiece circuit; no need to change the circuit to switch from mask to mouthpiece, according to the manufacturer.
- Learn Circuit: automatically measures circuit resistance and compliance.
- Disconnection alarm: monitoring several parameters.
- Touch screen: breath-by-breath statistics and real-time pressure/flow waveforms.
- Battery: internal lithium-ion battery, up to 8 hours with a new battery in normal conditions; connects to one or two Astral external batteries, according to the manufacturer.
- AirView connection: wireless, via the ResMed Connectivity Module (RCM).
- 2 preset programmes: FiO2 sensor optional.
Will it fit? Measure before you order
- Parts per the manufacturer: single limb circuits, Astral external battery, Astral DC/DC adapter, AirFit F20 NV mask and EasySpeak mouthpieces.
- Dimensions: 285 × 215 × 93 mm (L × W × H), weight 3.2 kg.
Not sure? Call us on +30 2311 286 262.
Basic safe-use tips
Always follow the manufacturer’s instructions for use. For example:
- The home ventilator is used only as directed by a doctor and under medical supervision; your doctor sets the settings.
- Always follow the manufacturer's instructions for use and maintenance schedule.
- Use only the parts and consumables the manufacturer specifies for the device.
Specifications
| Type | Home ventilator (non-invasive and invasive ventilation) |
|---|
| Model | Astral 100 (ResMed) |
|---|
| Patients | > 5 kg, according to the manufacturer |
|---|
| Circuits | single limb with intentional leak, single limb with expiratory valve and mouthpiece circuit |
|---|
| Delivered pressure | 2–50 cmH2O (leak circuit), 0–50 cmH2O (valve circuit) |
|---|
| Tidal volume | adult 100–2500 mL; paediatric 50–300 mL |
|---|
| Respiratory rate | adult off, 2–50 bpm; paediatric off, 5–80 bpm |
|---|
| Modes (valve circuit) | CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS |
|---|
| Modes (leak circuit) | CPAP, (S)T, P(A)C, iVAPS (≥ 30 kg), optional AutoEPAP |
|---|
| Modes (mouthpiece) | (A)CV, P(A)CV, PS |
|---|
| Preset programmes | 2 |
|---|
| Internal battery | lithium-ion 14.4 V, 6.6 Ah, 95 Wh; 8 hours (new battery, normal conditions) |
|---|
| Power supply | AC 100–240 V, 50–60 Hz, 90 W; external DC 12–24 V, 90 W |
|---|
| Sound power / pressure level | 43 ± 3 dBA / 35 ± 3 dBA |
|---|
| Supplemental oxygen | up to 30 L/min (low flow inlet) |
|---|
| Data | on screen 30-day summary, real-time pressure/flow 25 Hz; ResScan 365-day summary, 7 days detailed |
|---|
| Classification | IEC 60601-1 Class II, Type BF, continuous operation |
|---|
| Service life | 8 years with regular servicing, according to the manufacturer |
|---|
| Dimensions (L × W × H) | 285 × 215 × 93 mm |
|---|
| Weight | 3.2 kg |
|---|
| Code | RESP1589 |
|---|
Compliance: manufacturer and CE marking
Manufacturer: ResMed Pty Ltd, Australia (EU authorised representative: ResMed SAS)
Medical device, Class IIb, CE marked under Regulation (EU) 2017/745.
Printed instructions for use in Greek are in the box.
For any problem, contact us or write to [email protected]; we pass it on to the manufacturer.
This page does not replace the manufacturer's instructions for use or the advice of your doctor or nurse.
